LMZBJ9-12H4
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Typ
Epoxy resin casting busbar type current transformer, is widely
used for measuring current, electric energy and protective
relaying in the electrical system with rated frequency 50Hz or
60Hz and highest voltage for equipment 12kV. The product has
three secondary windings (one measuring winding & two
protective windings or two measuring windings &one protective
winding). Rated primary current is 1000-5000A and rated
secondary current is 5A/1A
Technical Data
1、Rated secondary current: 5A
2、Power frequency withstand voltage: 3kV
3、Rated frequency: 50/60Hz
4、Installation site: Indoor
5、Technical standard: IEC 60044-1
(IEC 61869-1&2
Specification
|
Rated transformation ratio(A) |
Accuracy classes combination |
rated output (VA) |
|||
|
Measuring |
Protective |
||||
|
0.2(S) |
0.5 |
5P10 |
5P20 |
||
|
1000/5 |
0.2/0.2 0.2/0.5 0.5/0.5 0.5/0.5/5P20 0.5/0.5/5P20/5P20 |
15 20 |
15 20 |
15 20 |
15 20 |
|
1500/5 |
|||||
|
2000/5 3000/5 4000/5 5000/5 |
|||||

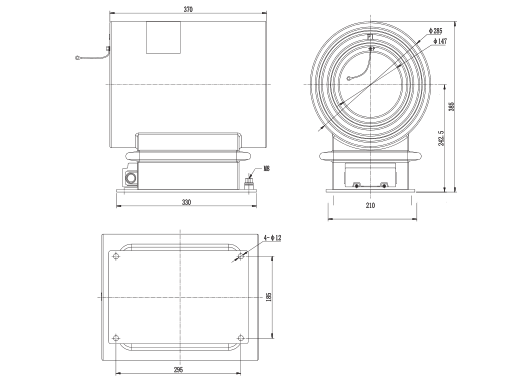

Outline
