LZZBJ10-36
CURRENT TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product
has the feature of light weight, omnidirectional
installation, withstanding nastiness and dampness. It is
widely used for measuring current, electric energy and
protective relaying in the electrical system with the rated
frequency 50- 60Hz and highest voltage for equipment 36
kV .
Technical Data
1、Rated insulation level: 36/70/170kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1 & (IEC61869-1&2)
","sans-serif"'>kV .
Specification
Two Secondary Single Ratio
|
Rated transformation ratio(A) |
Accuary classes combination |
Rated output （VA）
|
(ALF) |
(FS) |
Short-time thermal current Ith(kA/S) |
Rated dynamic current Idyn(kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2(S) |
0.5 |
10P |
||||||
|
15/5 …… 200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.5/0.5 0.2(S)/10P 0.5/10P
|
10 |
15 |
10
15
|
10
|
5 (10) |
100I1n |
250I1n |
|
300/5 |
25 |
63 |
||||||
|
400/5 |
31.5 |
80 |
||||||
|
500/5 |
40 |
100 |
||||||
|
600/5 |
40 |
100 |
||||||
|
800/5 |
63 |
130 |
||||||
|
1000/5 |
63 |
130 |
||||||
|
1500/5 |
80 |
160 |
||||||
Two Secondary Double Ratio
Rated
transformation ratio(A)
Accuary classes combination
（VA）
Rated output
(ALF)
(FS)
Short-time thermal current Ith(kA/S)
Rated dynamic current Idyn(kA)
Measuring
保护
Protective
0.2(S)
0.5
10P
15-30/5
20-40/5
……
200-400/5
0.2(S)/0.2(S)
0.2(S)/0.5
0.5/0.5
0.2(S)/10P
0.5/10P
10
15
10
15
10
5
(10)
75I1n
187.5I1n
300-600/5
31.5
80
500-1000/5
40
100
600-1200/5
50
130
750-1500/5
80
160

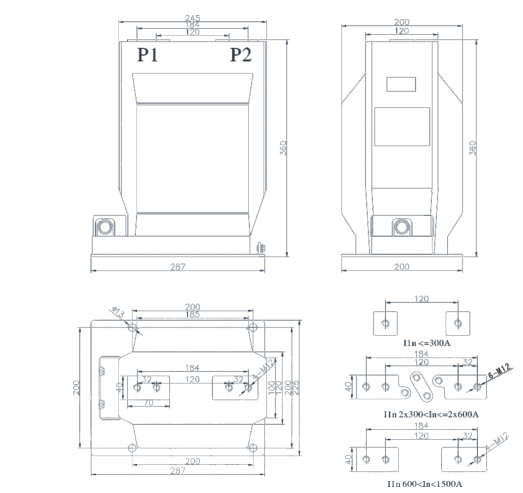

Outline
