JDZX10-12R
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxyresin casting and full enclosed construction, is used
indoor for measuring , electric energy and protective
relaying in single-phase or three-phase AC circuit with the
frequency 50Hz or 60Hz and highest voltage for equipment
7.2/12kV.
The product has the feature of high reliability, low magnetism
of core, large creepage distance of external insulation and
maintenance free etc
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
Voltage
（kV）
Rated secondary
Voltage
（kV）
Accuracy classes
combination
Rated output
(VA)
Thermal limiting
Output
(VA)
Rated
Insulation level
(kV)
JDZX10-12R
11/√3
0.1/√3
0.2
15
400
12/28/75
0.5
30
1
80
0.11/√3/0.11/3
0.2/6P
15/50
300
0.5/6P
30/50

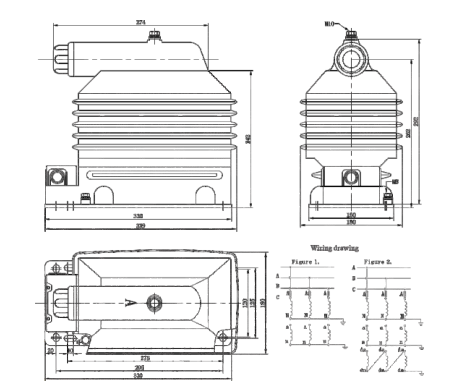

Outline
