JDZX12-24R
VOLTAGE TRANSFORMER
□ 24kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and fully enclosed construction,
is used indoor for measuring , electric
energy and protective relaying in the electric
system with the frequency 50Hz or 60Hz and
highest voltage for equipment 17.5kV (Up to 24 kV) .
The product has the feature of high reliability, low
magnetism of core, large creep distance of external
insulation and maintenance free etc.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
|
Type |
Rated primary Voltage（KV） |
Rated secondary Voltage（KV） |
Accuracy classes combination |
Rated output（VA） |
Thermal limiting Output （VA） |
Rated Insulation level （KV） |
|
JDZX12-24R |
15/√3 20/√3 22/√3 |
0.1/√3 0.11/√3 |
0.2 |
20 |
400 |
17.5/38/95 24/50/125 |
|
0.5 |
50 |
|||||
|
1 |
80 |
|||||
|
0.1/√3/0.1/√3 0.11/√3/0.11/√3 |
0.2/0.5 |
25/25 |
400 |
|||
|
0.5/0.5 |
40/40 |
|||||
|
0.1/√3/0.1/3 0.11/√3/0.11/3 |
0.5/3P |
50/100 |
400 |

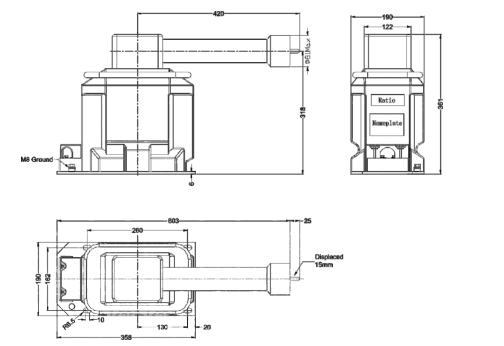

Outline
