LDS235-35 相序跑道型电流互感器

LDS235

CURRENT TRANSFORMER

□  Double Cable Cores Type CT

LDS235 adopts newly high permeability core with high measuring accuracy.

Secondary winding fully enclosed vacuum casting in antiflaming plastic shell.

It easily installed by making the primary cable through the whole, applied to

electrical system cable with highest equipment voltage 0.72, functioning as

the tool of current metering , signal collection, relay protection. The current

transformer can be executed according to the standard IEC 61869-1:2007

and IEC 61869-2:2012. Or IEC60044-1


Technical Data

1. Rated insulation level: 0.72/3/10kV

2. Rated primary current: up to 1500A

3. Rated secondary current: 5A or 1A

4. Installation Altitude : 2000m

  • 产品描述
  • 规格参数
  • 资料下载

Specification

Model

LDSC55-35P235

Purpose

Measuring current transformer

Protective current transformer

Double winding current transformer

Rated

transformation    ratio(A)

  COSΦ=0.8

Accuracy class and rated burden(VA)

0.2S

0.5

10P20

0.2S

10P20

100/5

2.5

5

5

2.5

5

150/5

3.75

5

5

3.75

5

200/5

5

7.5

10

5

10

300/5

7.5

10

10

7.5

10

400/5

10

15

15

10

15

500/5

15

15

15

15

15

600/5

15

15

15

15

15

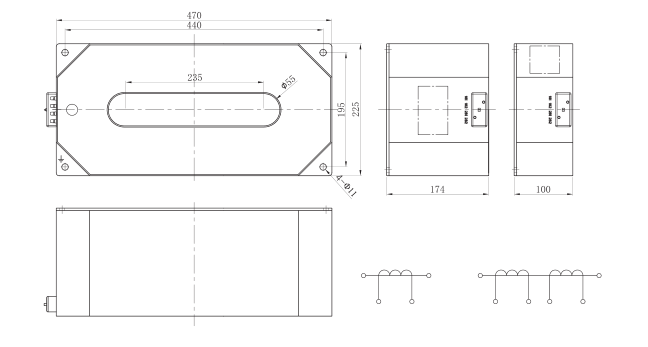

Outline
