Technical Date
1. Rated secondary current:5A、1A
2. Power frequency withstand voltage: 3kV.
3. Rated frequency: 50/60Hz
4. Installation site: indoor
5. Standards: IEC60044-1.2003 /GB1208-2006
Specification
|
Rated transformer ratio(A) |
Accuracy class combination |
Rated output(VA) |
|
Protective |
||
|
10P10 |
||
|
50/5 |
10P10 |
15 |
|
60/5 |
15 |
|
|
75/5 |
15 |
|
|
80/5 |
15 |
|
|
100/5 |
15 |
|
|
150/5 |
15 |
|
|
200/5 |
15 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

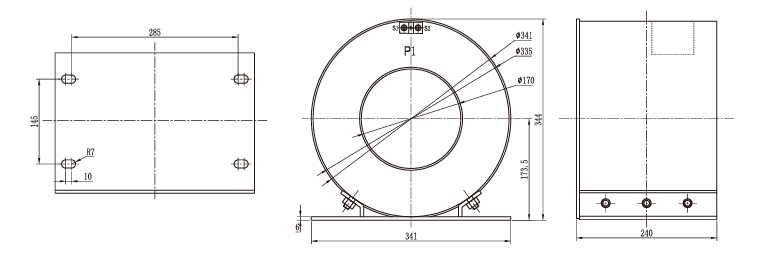

Outline drawing
